Description

Our all new ST4K 12 Inch is the culmination of years of our proven experience in delivering market leading LED auxiliary lighting. Fitted with 20 of OSRAMs® finest OSLON® LED for a combination of 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 468m

The ST4K range feature our all new 3-part beam adopted from our flag-ship Type-X driving light which has proven to outperform spot lights costing 3 x our price and a massive +165% increase in lux performance in comparison to the outgoing ST4000!

468m Metres 1 Lux Beam Throw

Market Leading Beam Distance!

Night

ST4K Double Row LED Light Bar

PINNACLE OF PERFORMANCE

When our customers fire up their brand new STEDI ST4K for the first time it's no surprise the first word is generally a swear word. With our range of ST4Ks running PURE Drive technology to take full advantage of the input power with 97% going straight to the LEDs and aggressive build quality, the ST4K is built for the test.

JACK OF ALL TRADES

Seeking the perfect all-rounder but getting overwhelmed by the choice of LED Driving lights out there? With the wide market of curved, straight, and micro bars you can sometimes find yourself getting confused by choice and eventually falling onto a light that might not even meet your intended purpose. The ST4K meets all corners of the market with its combo beam bringing the best of spot + flood, shooting an amazing 468m in distance and 55m each side of the vehicle in flood beam.

ENVIABLE PEDIGREE

The STEDI ST4K has been built on the same platform as the STEDI TYPE X which is our flagship when it comes to LED Driving Lights providing the best of both worlds with 20 OSRAMs® OSLON® LEDs and a wide range of sizes, the application for the ST4K is endless. The ST4K proves to be a well-performing all-rounder in any situation so if it's a single multi-purpose light your after, the ST4K will meet your needs.

STEDI Smart Harness Single Output Key Features DT

STEDI ST4K 12 Inch 20 LED LED Light Bar Lux Graph

5700 Kelvin (Pure White)

DETAILS

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

STEDI ST4K-20 features 20 of OSRAMs® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.

4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 468m

Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).

Our Pure-Drive circuit design allow 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

A360.0 Cast face plate, extruded Aluminum heat sinkg | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters Drown it, we insist!

Environmentally sealed Deutsch ® DT connector.

Backed by our no nonsense 5-year replacement warranty.

MOUNT IT YOUR WAY

We know you want flexible mounting options, which is why weve included two seperate mounting options.

The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar dech very straight forward.

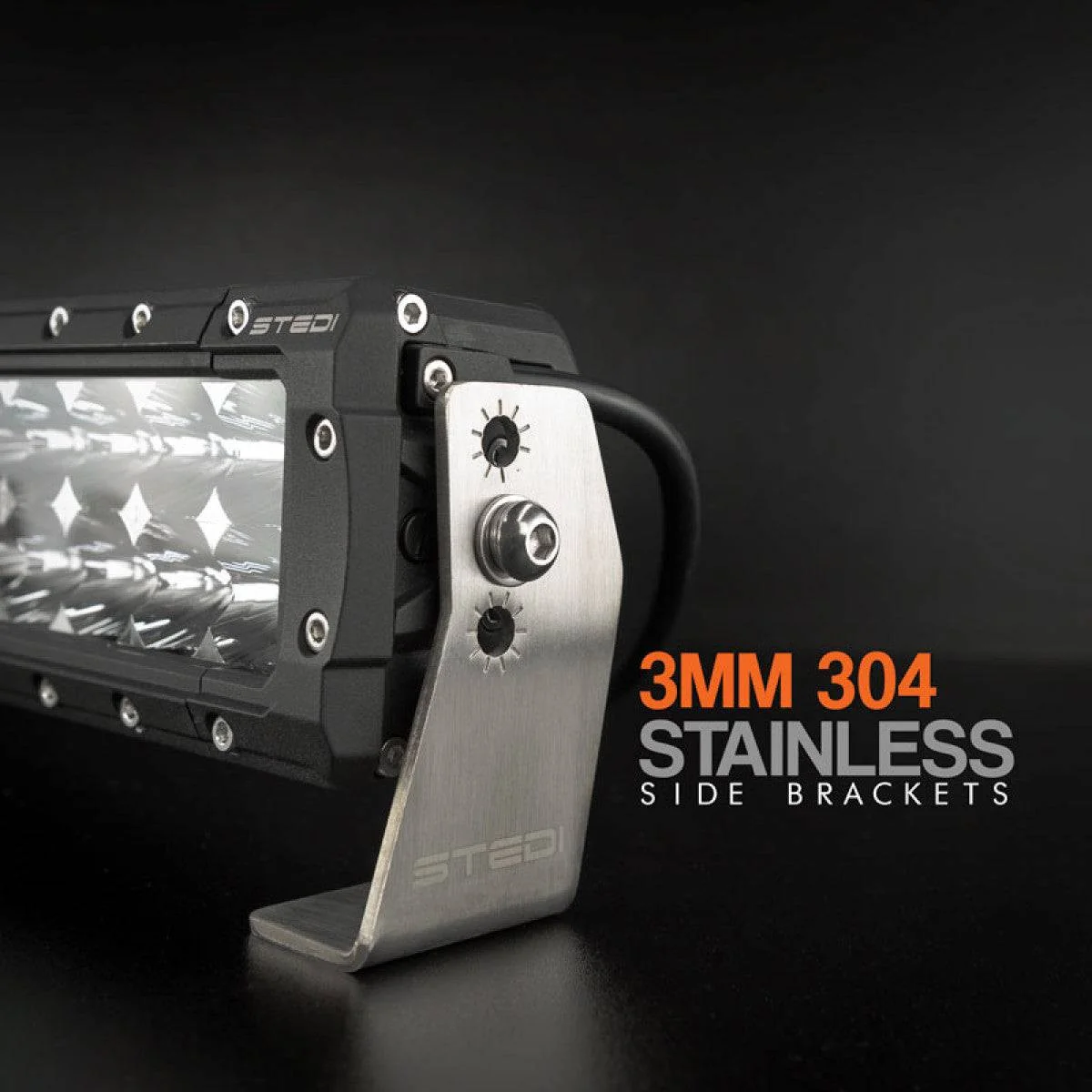

Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.

EASY-FIT Plug & Play High Beam Wiring Harness included.

Included is our acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters, making for an easy connection to high beam. Further unlike other brands our kit has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsover.

No nonsense 5 Year Replacement Warranty backed by an Australian company with bricks & mortar presence.

View

Specifications

LED MANUFACTURER	OSRAM (Oslon) ®
LED COUNT	20
VOLTAGE	12V & 24V
LENS MATERIAL	OPTICAL GRADE, HARD COATED LEXAN
LUMENS	4,800 LUMENS
PEAK INTENSITY (CANDELA)	220,800cd
HOUSING MATERIAL	A360.0 Cast face plate, extruded Aluminum heat sink
AMPERES	4.2A @ 13.6v
LIFESPAN	50,000
FLOOD BEAM	50°
SPOT BEAM	5.8°
INGRESS PROTECTION	IP68
OPERATING TEMP	-40°C to 60°C
WEIGHT	1.610kg

LED Light Bar Buyers Guide

Whats in the box

1 x 12 inch 20 LED STEDI Oslon LED Light Bar
2 x Brushed Stainless Steel Side Brackets
2 x Adjustable Sliding Brackets
Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
