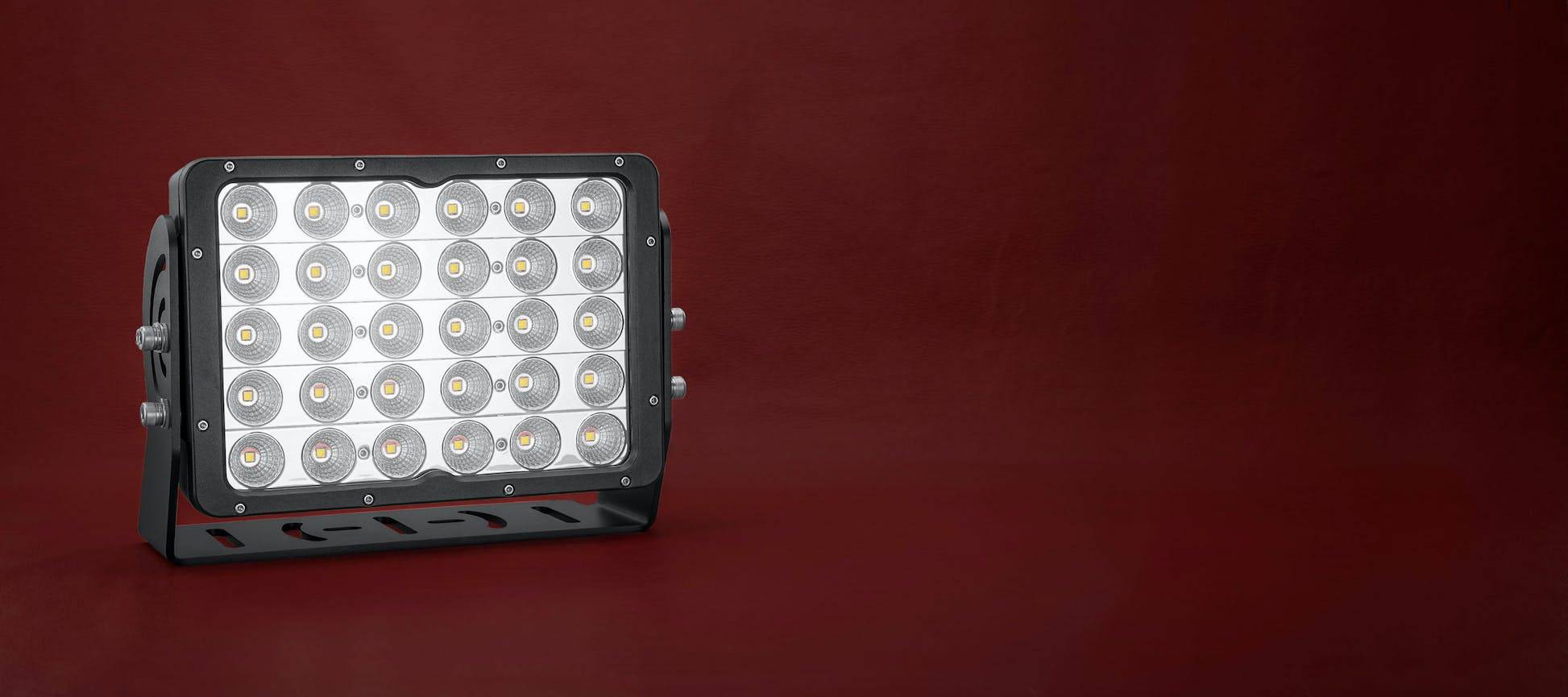

HEAVY DUTY MINING & INDUSTRIAL 150W LED FLOOD LIGHT
THE NITTY
GRITTY.
The new STEDI Mine Spec range is specifically engineered for the heavy industrial market. Application for our 150W Heavy include Mobile light towers, Heavy Vehicle lighting, work shop lighting, Drill Rig lighting.
MATERIAL
- 6063 Extruded Aluminium CAE optimized heat-sink
- Ultra efficient reflectors form smooth flood beam free of artifacts.
- Unbreakable Lexan Polycarbonate PC len.
- 4.5mm thick Stainless Steel Bracket
- Anodized polyester UV stable powder coat
PROTECTED AGAINST
- Reverse Polarity
- Shock-proof, IP68 Waterproof, and dust proof.
- RFI/EMC
- Over & Under Voltage protection
FEATURES
- PWM Thermal Management Regulations
- 50,000 Hours operating life
- Gore-Tex Breather Vent
TECH SPECS
| POWER | 150W |
| LED | 30 x 5W LED |
| CURRENT DRAW | 10.4A @ 13.2v, 4.5A @ 24v |
| VOLTAGE | 9 to 36v |
| RAW LUMENS | 15,000Lm |
| INGRESS PROTECTION | IP68 |
| COLOUR TEMP | 6000K |
| LIFESPAN | 50,000hrs |
| LENS | Harden Optical PC |
| WEIGHT | 5.350kg |
| OPERATING TEMP | - 40° to +60°C |
| HOUSING MATERIAL | Aluminium Alloy with Polyester UV Powder Coat |
| DIMENSIONS (W x D x H) | 285mm x 130mm x 220mm |
$300.00
HEAVY DUTY MINING & INDUSTRIAL 150W LED FLOOD LIGHT—
$300.00
Description
THE NITTY
GRITTY.
The new STEDI Mine Spec range is specifically engineered for the heavy industrial market. Application for our 150W Heavy include Mobile light towers, Heavy Vehicle lighting, work shop lighting, Drill Rig lighting.
MATERIAL
- 6063 Extruded Aluminium CAE optimized heat-sink
- Ultra efficient reflectors form smooth flood beam free of artifacts.
- Unbreakable Lexan Polycarbonate PC len.
- 4.5mm thick Stainless Steel Bracket
- Anodized polyester UV stable powder coat
PROTECTED AGAINST
- Reverse Polarity
- Shock-proof, IP68 Waterproof, and dust proof.
- RFI/EMC
- Over & Under Voltage protection
FEATURES
- PWM Thermal Management Regulations
- 50,000 Hours operating life
- Gore-Tex Breather Vent
TECH SPECS
| POWER | 150W |
| LED | 30 x 5W LED |
| CURRENT DRAW | 10.4A @ 13.2v, 4.5A @ 24v |
| VOLTAGE | 9 to 36v |
| RAW LUMENS | 15,000Lm |
| INGRESS PROTECTION | IP68 |
| COLOUR TEMP | 6000K |
| LIFESPAN | 50,000hrs |
| LENS | Harden Optical PC |
| WEIGHT | 5.350kg |
| OPERATING TEMP | - 40° to +60°C |
| HOUSING MATERIAL | Aluminium Alloy with Polyester UV Powder Coat |
| DIMENSIONS (W x D x H) | 285mm x 130mm x 220mm |
